Versioning made easy
with W3C XML Schema and Pipelines

Henry S. Thompson

Architecture Domain
World Wide Web Consortium

Markup Technology Ltd.

20 April 2004

What is the versioning problem?

• Applications grow and change
• XML document types for applications grow and change
  • So we end up with multiple versions of the schema for the document type
• Old code is hard to eradicate
  • So we end up with multiple versions of the code implementating the application

Analysis of versioning scenarios

• Two dimensions of the problem:
  • Active vs. passive

    Active

    Schema author prepares for versioning, with e.g. wildcards

    Passive

    No such preparation

  • Engaged vs. dis-engaged

    Engaged

    Close coupling between developer and users; regular upgrades of schemas

    Dis-engaged

    Loose coupling; no schema upgrades

Versioning and Web Services

• David Orchard has articulated a detailed analysis of expected versioning scenarios for Web Services
• The bad news
  • We're in the Passive+Dis-engaged quadrant
• The good news
  • Changes are likely to be additive
• How can we get a solution for W3C XML Schema
  • New software?
    • E.g. Semi-validator
  • Changes to W3C XML Schema
    • E.g. Open content models

Exploiting partial validation

• Key aspect of W3C XML Schema is fine-grained distributed validity information
  • Every infoitem has validity information
  • Two three-valued properties in the PSVI

    Validity

    valid; notKnown; invalid

    Validation attempted

    full; partial; none

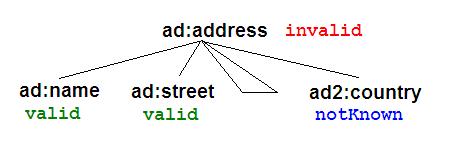

  • In the case of additive versioning, we get a PSVI like this
  •
  • It looks like we need to think about a tool that could walk the PSVI and look for valid sub-sequences and re-decorate as it goes

Exploiting partial validation, cont'd

• We could do that
  • but it would be wrong :-)
• It would have to recapitulate almost all the semantics of a schema validator
• Lightbulb! Why not use a validator itself?
• If we could just get rid of those notKnown nodes and revalidate, that would be good
• So we need a three-step pipeline
  • Validation
  • Surgery
  • Validation
• Fortunately, Markup Technology have developed a pipeline authoring and execution tool
  • So it was easy to check this out

Introducing MT Pipeline

• The lack of a coherent XML processing model to support decomposition of complex XML processing tasks represents a serious bottleneck
  • for enterprise use of XML in general
  • for Web Services in particular
• All that's needed is support for the basic tool in the architect's armoury: Divide and Conquer
• In other words -- XML Pipelines
  • Configurations of basic XML processing steps
  • Some steps are relatively heavy
    • XSLT-based transformation
    • W3C XML Schema-based validation
  • Others can be much simpler
    • XPath-based extraction
    • One-for-one renaming

What is missing?

• A standard for pipeline specification?
  • Interop matters here just like everywhere else
• High performance?
  • Pipelines need to be fast to be attractive
• We have a candidate standard: the Sun XML Pipeline W3C Note is a good starting point
  • Published by W3C in February of 2002
  • Edited by Eve Maler and Norm Walsh
  • Many co-submitters, including Markup Technology

The Sun Pipeline design

• An XML document type for describing pipelines
• A pipeline is a sequence of steps, with specified input(s), output(s) and parameters
• The processing required to perform a step is named, not defined in detail
• Dependency-driven, in the mode of make and ant

Re-interpreting the Sun Pipeline Note

• We have re-interpreted the proposed document type
  • Removing some limitations
  • Enabling more efficient implementation
• We interpret it as simply specifying a configuration of operations on XML-encoded information
  • Without dependency-driven semantics
• Allows intermediate results to be passed between components without serialisation
• So we think of pipelines more like shell scripts
  • Mapping externally specified inputs to outputs
• Facilitates deploying pipelines
  • For example in servers where they can then operate on message-derived input to produce message-delivered output
• And we have a highly optimised implementation

Using MT Pipeline for V2S

• We're looking for a way to Validate twice
  • with Surgery in between
• Fortunately, MTPL already supports
  • W3C XML Schema validation, with full PSVI output in the pipeline
  • Surgery, that is, XPath-based elimination of elements and/or attributes from an infoset
  • XPath extension functions to access the PSVI
• So we can just build the pipe and try it
  • [Demo]
  • This pipeline runs very efficiently in our MT Pipeline Light tool

Schema design issues

• Will this always work?
• Alas, no. Several pre-conditions:
  • Schema validators are not required to keep going after finding an error
    • But most (all?) of them actually do
  • In order for REC's error recovery strategy to work, only top-level element declarations can be used
    • Because once the content model is blown, we don't know which local declarations to use
    • [Although some validators use them anyway]
• Will it always make sense?
• Likewise no. Syntactic additions are not always semantically clean

The additive assumption

• David Orchard points to the success of HTML's "must ignore" strategy wrt unknown markup
• But Michael Sperberg-McQueen points out this is not the same as what's required for David's own examples
  • HTML just ignores the tags it doesn't understand
    • But it processes the content
  • Our story needs to ignore the whole unknown subtree
• And additional elements are not necessarily purely additive in meaning
  • Ignoring nad:country can get you in trouble:

    • <shipTo>
        <ad:name>HM Queen</ad:name>
        <ad:street>Buck House</ad:street>
        <ad:city>London</ad:city>
        <nad:country>UK</nad:country>
       </shipTo>

Changing W3C XML Schema

• Lots of people use local element declarations
• They shouldn't be disenfranchised
• The W3C XML Schema WG was already looking at a change behind the scenes
  • Re-interpreting local element declarations as just that:
    • Declarations scoped to their enclosing type definition
  • Conceptually, all content model particles would then be references to declarations by name
• Such a change would make local element declarations available for wildcards
  • And for error recovery
• So this change would allow local declarations to work with V2S

Conclusions

• W3C XML Schema's partial validation is powerful
• Pipelines are cool
• Watch for free MT Pipeline beta
• E-mail me (ht@markup.co.uk) if you are interested in participating in an alpha programme
